Lab Printers

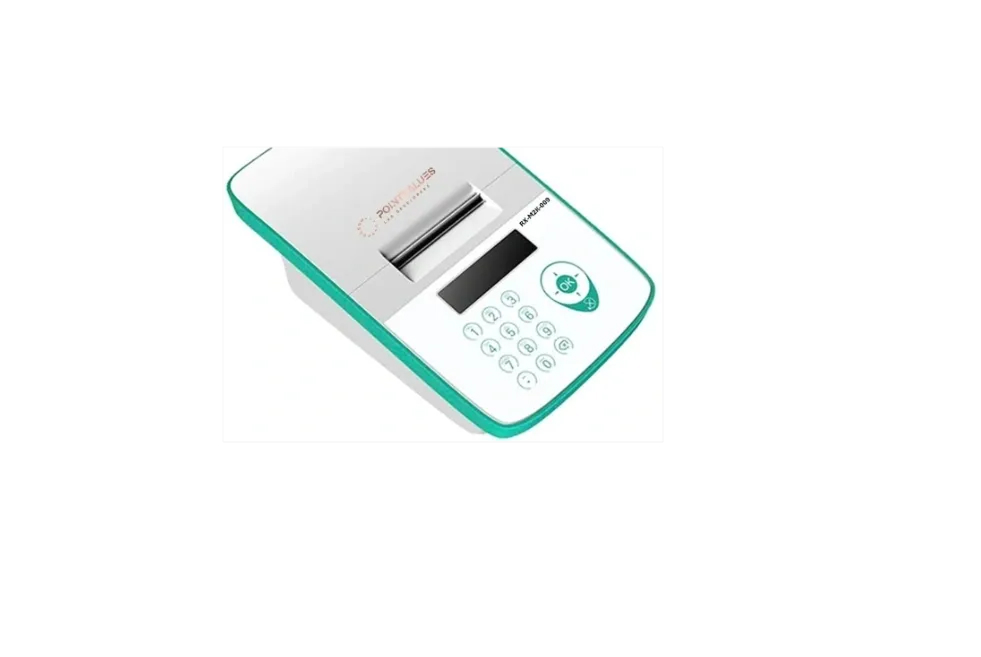

POINTVALES Lab Printer

High-speed dot printing, printed pages are suitable for long-term preservation, ISO/GLP compliant Data Printout.

POINT VALUES RX-M2K-009 & RX-M2P-010

Lab Printer is integrated to various laboratory instruments encompassing:

1. Electrochemical instruments: pH meter, ion meter, potentiometric titration, Karl Fischer, etc., and support almost all brands such as METTLER, Metrohm, OHAUS, Kyoto, WTW, HORIBA, Shanghai Leici.
2. Ultraviolet spectrophotometer: Shimadzu UV series ultraviolet spectrophotometer in Japan.
3. Hardness tester: Including products produced by Varian, Agilent, Shanghai Huanghai and others.
4. Vernier calipers: All testing equipment with SPC interface, such as Mitutoyo Japan.
5. Water quality measuring instrument: Turbidity meter produced by Hach Company. For additional instrument compatibility, please consult our sales staff.

Key Features

• Firmware upgradable
• Paper-end detect
• Long-term availability
• Use ink ribbon & normal paper for long-term durability
• 128×64 OLED display
• Built-in real time clock
• Sum and mean calculations
• Sample name and batch number input & editing
• Output interface: U-Disk in Excel or TXT file
• Barcode Scanner Support

Technical Information – Specifications

• Printing method: Impact dot matrix
• Inking: Citizen IR31B or EPSON ERC-43B
• Printing paper: 76mm (width) × 60mm (diameter)
• Pixel: 448
• Print numbers: 1 original + 2 copies
• Connection port: RS232/D-sub 9-pin, male, full duplex / USB / USB2.0 / Ethernet (optional) / RJ45
• Operating temperature range: 5–45°C
• Input voltage: DC 24V (1.5A)
• Gross weight (with packaging): approx. 500g
